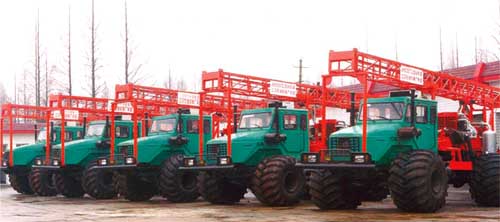

Special Vehicles for Petroleum Engineering
|
|
|
Jianghan Petroleum Machinery Plant (JPMP) of Jianghan Petroleum Administration Bureau is a specialist manufacturing special vehicles for oil engineering and water treatment equipment. JPMP has been ISO 9001 certified, and was granted to use API Monogram of 4F, 8C and 11E. JPMP has ASME certificate with U stamp for fabrication of pressure vessels. The special vehicles with rational carriers and flexible configuration feature good cross-country capacity, high suitability, easy operation and high efficiency, and ideal for use in extreme temperature environments.
Main products:
|
JHX5260RZJ, JHX523-TZJ Drilling trucks |
JHX5120TZJ Drilling trucks |
|
JHX5090TZJ Drilling trucks |
Oil production trucks |
|
Well logging trucks |
Well testing trucks |
|
JHX5140TXL Well-flush & wax-removing trucks |
JHX5090TGY Pump trucks |
|
JHX5100TGL Boiler truck |

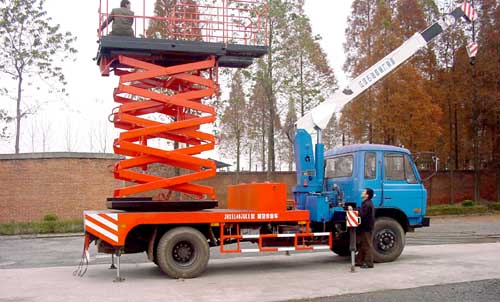

Servicing Trucks |
|
|
JHX5260TZJ and JHX5230TZJ Drill Trucks |
|
|
|
|
|
JHX5260TZJ Drill Trucks |
JHX5230TZJ Drill Trucks |
JHX5260TZJ and JHX5230TZJ drill trucks, with compressed air/mud medium, are used for geological exploration in petroleum, coal, metal mines and hydrological engineering. Special and necessary drilling equipment installed on a heavy truck is suitable for operation on complex surface and in the Gobi and desert areas. The drill truck is equipped with an expanding rotary table with 5-speed, dual drum winch and rigid mast hydraulic chain force applying device, air compressor and mud pump with large capacity, hydraulic and air control system, hydraulic leveling jacks, operating console and instrument panel, featuring easy operation good applicability and cross-country capacity.
Specifications:
|
Model |
JHX5260TZJ Drill Trucks |
JHX5230TZJ Drill Trucks |
|
Drill depth |
Drill with mud(m) |
300 |
|
Drill with air(m) |
80 |
|
Hydrological well(m) |
150 |
|
Chassis |
Model |
North-Benz 2629A |
Man 33.373 |
|
Drive |
6*6 |
|
Engine model |
0M442 |
D2866LF21 |
|
Engine power(KW/rpm) |
213/2100 |
272/2000 |
|
Engine torque(N.m/rpm) |
1100/1000-1600 |
1520/1200-1400 |
|
Mud pump |
Model |
BW600/30-1H |
|
Nominal displacement(L/min) |
520 |
|
Max. pressure(MPa) |
4 |
|
Air compressor |
Model |
2W-12.8 air-cooled fixed |
|
|
Nominal displacement(m³/min) |
12.5 |
|
|
Max. pressure(MPa) |
0.8 |
|
|
Rotary table |
Max. speed(rpm) |
255 (engine at 1600rpm or less) |
|
Nominal diameter(mm) |
190 |
|
Max. torque(N.m) |
5300 |
8000 |
|
Winch |
Max. hoisting load(KN) |
90 |
|
Max. hoisting speed(m/s) |
1.2 |
1.55 |
|
Drum wire pull(kg) |
3100 |
|
Max. applied force(KN) |
30 |
|
Total mass(kg) |
25340 |
22500 |
|
Dimension (L*W*H)(mm) |
11500*2500*3990 |
12000*2500*3990 |
|
|

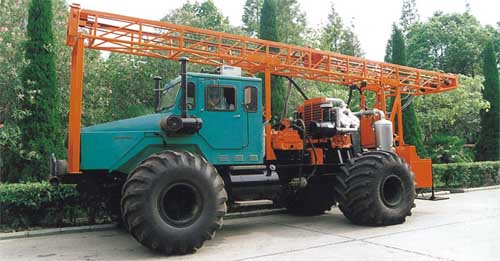

JHX5120TZJ Drilling truck
|
|
JHX5120TZJ drilling truck, equipped with chassis, PTO, air compressor, mud pump, gear reducer, mast, secondary frame, force applying device, power head, drill rod (sand cleaner), hydraulic system and air system concentratively controlled by driller, is suitable for geological exploration in oil, coal, metal mines and hydrological engineering. Drilling with compressed air or mud is available.
Features:
1. Compact structure, simple driving line and complete functions.
2. The truck equipped with low-pressure and wide tires has good cross-country ability to suit for operation in desert.
3. Power head (top drive) promotes operation effect such as faster drilling speed, easier drill rod joint and break out.
4. The truck equipped with sand cleaner makes easy operation in drift sand formation.
5. Drilling and hoisting are driven by one hydraulic motor.
6. Controllers of moving parts and valve are installed on the console for safety operation.
Specifications:
|
Drilling depths |
Drilling with mud(m) |
100 |
|
Drilling with air(m) |
8(each drill pipe) |
|
Air compressor |
Max. displacement(m³/min) |
12.5 |
|
Max. displacing pressure(MPa) |
0.8 |
|
Mud pump |
Design displacement(L/min) |
450 |
|
Pressure(MPa) |
3 |
|
Force applying system |
Applying and lifting force(KN) |
20 |
|
Max. lifting speed(m/s) |
1 |
|
Power head |
Speed(rpm) |
0-230 |
|
Max. output torque(N.m) |
1000 |
|
Hydraulic system |
Rated pressure(MPa) |
16 |
|
Dimension(L*W*H)(mm) |
10500*3600*4200 |
|
|

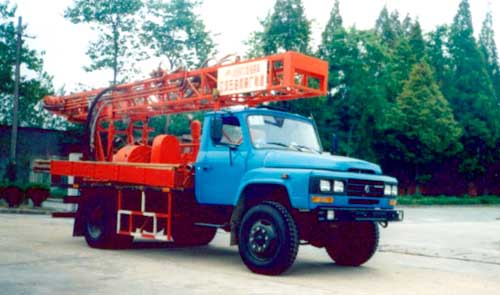

JHX5090TZJ Drilling Truck
|
|
JHX5090TJZ drilling truck is used for geological exploration of oil, coal, metallic ore and hydrological engineering. Th truck is composed of carrier, PTO, mud pump, gear reducer, mast, sub frame, pressuring device, power unit, drill pipes and hydraulic and air system controlled by the driller.
Characteristics:
1. Simple driving is suitable for operation in oilfield.
2. Power unit (top drive) improves drilling speed, makes connection and removal of drill pipe easy.
3. Drilling and lifting are conducted by hydraulic motor.
4. Compact structure and complete functions.
5. Control system for moving parts and valves are mounted on the console for reliable and safe operation.
Specifications:
|
Drilling depth |
|
Drilling with mud pump(m) |
50 |
|
Mud pump |
|
Displacement(L/min) |
340 |
Pressure(MPa) |
5 |
|
Pressuring system |
|
Pressuring and lifting force(KN) |
20 |
Max. lifting speed(m/s) |
1 |
|
Power unit |
|
Speed(rpm) |
0-230 |
Max. output torque(N.m) |
1000 |
|
Hydraulic system |
|
Rated pressure(MPa) |
16 |
|
Carrier |
|
Carrier type |
EQ1093FJ |
Engine power(KW/r.pm) |
99/3000 |
|
Engine model |
EQ6100-1 |
Dimension(L*W*H)(mm) |
9270*2480*3360 |
|
Max. torque,(N.m/rpm) |
353/1500 |
Wheel base(mm) |
3950 |
|
Total weight(Kg) |
8045 |
Departure angle(º) |
26 |
|
Approach angle(º) |
42 |
Max. speed(Km/h) |
90 |
|
Min. ground clearances(mm) |
265 |
Min. turning diameter(m) |
16.4 |
|
Max. gradeability(%) |
20 |
|
|
|
|
Oil Production Trucks |
|
|
|
|
|
Type JHX5140TCY |
Type JHX5170TCY |
|
|
|
|
Type JHX5200TCY |
Type JHX5190TCY |
Oil production truck is used for production operation of marginal wells and abandoned wells up to 2300 meters. It is also used for fishing operation in oil and water wells.
Features:
1. Digital display of depth measurement, weight indication and speed to monitor oil production operation.
2. No fixed production equipment is need. High mobility and less operators reduce cost.
3. Good gradeability and flexible operation are suitable for operation of marginal wells.
Specification:
|
Model |
JHX5140TCY |
JHX5170TCY |
JHX5200TCY |
JHX5190TCY |
|
Chassis |
Model |
EQ1141G7DJ |
ZZ1192BL461 |
ZZ1322BM434 |
ZZ1192BL461 |
|
Drive |
4*2 |
4* 2 |
6*4 |
4*2 |
|
Wheel base(mm) |
4500 |
4600 |
4325+1350 |
4600 |
|
Engine |
6BTA5.9 |
WD615.61 |
WD615.67A |
WD615.61A |
|
Engine power(KW) |
132 |
191 |
206 |
200 |
|
Max. torque(N.m) |
617 |
830 |
1160 |
1100 |
|
Min ground clearance(mm) |
248 |
314 |
320 |
314 |
|
Approach angle(º) |
34 |
27 |
18 |
27 |
|
Departure angle(º) |
13 |
13 |
14 |
13 |
|
Min. turning diameter(m) |
16 |
18 |
20.9 |
18 |
|
Max. gradeability(100 semicolon) |
28 |
39 |
28 |
39 |
|
Max. speed(Km/h) |
90 |
92 |
80 |
92 |
|
Dimension(L* W *H)(mm) |
11700*2470*3780 |
11660*2470*3940 |
11655*2500*4036 |
10165*2500*3980 |
|
Total mass(Kg) |
14200 |
16500 |
20150 |
18320 |
|
Max. running depth(m) |
2100 |
2100 |
2000 |
2000 |
|
Max. hoisting load(KN) |
80 |
80 |
120 |
80 |
|
Rated hoisting load(KN) |
30 |
30 |
50 |
30 |
|
Operating velocity(m/s) |
0.5-5 |
0.38-5 |
0.38-1 |
0.2-1.5 |
|
Drum capacity(m) |
2300 |
2300 |
2300 |
2300 |
|
Drum |
Wireline diameter(mm) |
Ø13 |
Ø13 |
Ø16 |
Ø16 |
|
Drum diameter(mm) |
Ø325 |
Ø325 |
Ø345 |
Ø325 |
|
Drum length(mm) |
710 |
710 |
909 |
909 |
|
Mast height(m) |
11.5 |
11.5 |
11.5 |
11.5 |
|
Hydraulic system |
Rated pressure(MPa) |
10 |
10 |
10 |
16 |
|
Max. pump displacement(L/r) |
32 |
40 |
40 |
40 |
|
Tank capacity(L) |
120 |
120 |
120 |
120 |
|
Hydraulic oil |
YA-N46 |
YA-N46 |
YA-N46 |
YA-N16 |
|
Rated air system pressure(MPa) |
0.8 |
0.8 |
0.8 |
0.8 |
|
|

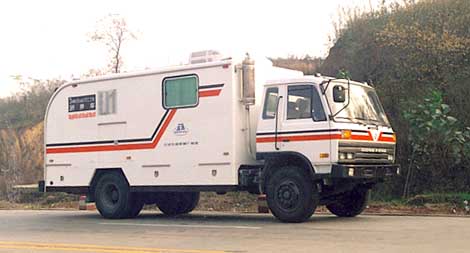

Logging Trucks
|
|
Logging Trucks are used for production logging and other logging operation using wireline. The truck consists of carrier, operating device and drawworks driven by mechanical and hydraulic system or fully hydraulic system, making operation smooth. The van is insulated and equipped with ceiling air conditioner made by Coleman of USA for operation at high and low temperatures. Special depth measuring system and auto cable reeling system that may be operated manually are equipped. Canvas door or aluminum alloy door is available.
Specifications:
|
Model |
JHX5140TCJ |
JHX5141TCJ |
|
Drum capacity(m) |
Ø8mm |
5500 |
|
|
Ø 5.6mm |
7000 |
5500 |
|
|
Ø 12.6mm |
4500 |
|
4200 |
|
Logging depth(m) |
Ø 8mm |
5000 |
|
|
|
Ø 5.6mm |
6500 |
5000 |
|
|
Ø 12.6mm |
4300 |
|
3500 |
|
Max. lift load(KN) |
50 |
50 |
50 |
|
Cable speed(m/h) |
30-8000 |
120-8000 |
30-8000 |
|
Dimension(L*W*H)(mm) |
8180*2500*3480 |
8540*2490*3445 |
1. Imported or domestic generator is available upon request.
2. Cable and instrumentation are equipped by customer.
Carrier:
|
Model |
Carrier |
Drive |
Wheel base(mm) |
Approach angle(º) |
DepartureAngle(º) |
Max. speed(Km/h) |
Total mass(Kg) |
|
JHX5140TCJ |
EQ1141G7DJ |
4*2 |
4500 |
35 |
15 |
90 |
13000 |
|
JHX5141TCJ |
EQ1141G7DJ |
4*4 |
5000 |
35 |
16 |
90 |
13400 |
|
|

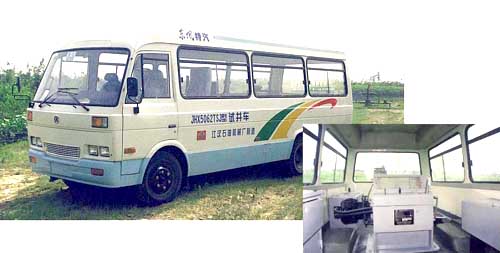

Well Testing Trucks
|
|
Well testing truck, composed of carrier and integrated hydraulic drawworks with removable or fixed drum, is used for testing wells in oilfield. The hydraulic drawworks consists of drum, cable reeling system, depth measuring system, operating panel and hand operating device. The equipment features simple structure and easy operation.
Specifications:
|
Model |
JHX5040TSJ |
JHX5062TSJ |
|
Carrier |
Model |
NJ6596SFF |
EQ6690L |
|
Drive |
4*2 |
4*2 |
|
Min. turning diameter(m) |
12.1 |
14.5 |
|
Max. Gradeability(100 semicolon) |
33 |
30 |
|
Max. Speed(Km/h) |
100 |
90 |
|
Approach angle(º) |
22.5 |
22 |
|
Departure angle(º) |
10.5 |
12 |
|
Min. ground clearance(mm) |
222 |
176 |
|
Wheel base(mm) |
3310 |
3650 |
|
Engine power(KW/rpm) |
76/3600 |
92/2800 |
|
Total weight(Kg) |
3870 |
5460 |
|
Dimension(L*W*H)(mm) |
5980*2000*2752 |
6925*2130*2640 |
|
Hydraulic drawworks |
Drive |
Hydraulic |
Hydraulic |
|
Drum capacity(m3) |
2500 |
6000 , 5000 |
|
Wire diameter(mm) |
Ø 2.4 |
Ø 2.2 , Ø 2.4 |
|
Max. Pull(KN) |
8 |
10 |
|
Max. Speed(rpm) |
210 |
320 |
|
Hydraulic system pressure(MPa) |
16 |
16 |
|
|

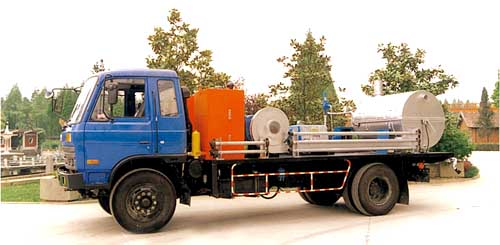

JHX5140TXL Wax-removing truck
|
|
JHX5140 wax-removing truck, equipped with heating and pressurizing apparatus on the carrier of ED1141G7DJ, is used for removing wax on the valve on the bottom of well and in tubing, also for releasing block, pressure testing, well cementing and cleaning tubing and equipment on the surface. Using the wax-removing truck can simplify well service operation, increase oil output, improve wax-remove operation conditions, lower labor strength and operation cost.
Application:
Applicable ambient temperature: -30(ºC)~40(ºC)
Medium temperature at inlet:over 5(ºC)
Working medium:
a. Crude oil, viscosity E50�?0 cP.
b. Mud.
Specifications:
|
Carrier |
|
Model |
EQ1141G7DJ |
Drive mode |
4*2 |
|
Engine model |
EQ6BTA |
Engine power(KW/rpm) |
132/2500 |
|
Dimension(L*W*H)(mm) |
8310*2500*2900 |
Min. ground clearance(mm) |
248 |
|
Approach angle(º) |
34 |
Departure angle(º) |
18 |
|
Min. turning diameter(m) |
16 |
Max. speed(km/h) |
80 |
|
Max. gradeability(%) |
28 |
Brake distance at 30km/h(m) |
Smaller same as 9 |
|
Total weight(kg) |
13790 |
Hydraulic system pressure(MPa) |
12 |
|
Max. pressure of triplex pump(MPa) |
35 |
Max. displacement(m³/h) |
70 |
|
Max. liquid temperature at boiler outlet(ºC) |
160 |
Fuel consuption(L/h) |
65(Diesel) |
|
|

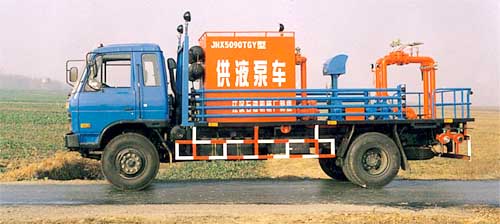

JHX5090TGY Pump truck
|
|
JHX5090TGY pump truck, one of the equipment for cementing operation in oilfield, is used to supply cementing truck with water and chemicals through manifold truck and distributor. It is also used supply liquid and water for fracturing operation. The pump truck is composed of carrier, PTO, drive system, centrifugal pump, self-suction unit, inlet and outlet manifolds, hydraulic cylinder, hose and pipe. All units are mounted on the carrier. The centrifugal is driven by PTO of the carrier.
Characteristics:
1. Self-suction height: 4m, head: 80m, displacement:200 m³/h¡£
2. Fast suction. Self-suction only takes 15~25 seconds faster 2~3 times than the similar products.
3. Anti-corrosion. Advanced anti-corrosion technology of flake glass-filled coating to meet operating requirement.
4. The pump truck is suitable for operation in various regions and seasons as its reasonable structure, leading technology, easy operation, safety and reliability and completed units.
Specifications:
|
Completed truck |
|
Total weight(kg) |
9335 |
Dimension(L*W*L)(mm) |
7780*2490*3340 |
|
Carrier |
|
Type |
EQ1141G7DJ, Cat. II |
Engine |
EQ6BTA5.9 |
|
Rated power(KW/r.pm) |
132(2500) |
|
|
|
Drive |
|
Engine speed(r.pm) |
1695 |
Transmission shifts |
4 |
|
Ratio of transfer case |
1:1 |
Ration of Pump transmission |
2.647:1 |
|
Output speed of pump transmission(r.pm) |
2913 |
Output power of single shaft of pump transmission(KW) |
40.3 |
|
Centrifugal pump |
|
Flow(m³/h) |
100 |
Head(m) |
80 |
|
Self-suction height(m) |
4 |
Shaft power(KW) |
30.3 |
|
Inlet manifold |
|
Nominal diameter of manifold(mm) |
100 |
Nominal diameter of hose(mm) |
100 |
|
Outlet manifold |
|
N. D.*No(mm) |
80*4 |
N. D.*No(mm) |
100*2 |
|
Capacity of tank(m³) |
4 |
|
|
|
|

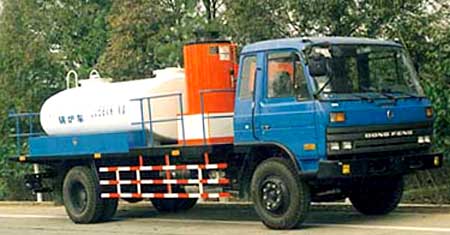

JHX5100TGL Boiler truck
|
|
JHX5100TGL boiler truck, making high pressure and high temperature steam by the efficient fuel boiler and automatic control technology, is widely used for well service operation and cleaning and defrosting drilling and production equipment, apparatus and pipe in oilfield. It has features of reliability, efficiency and safety. The truck with other types of boiler is available upon request.
Features:
1. Efficient boiler: It reaches working conditions (7MPa, 180ºC) within 1 minute with 1.5MBTU of burning capacity and fast temperature rise.
2. Low consumption: Boiler's fuel consumption is 22.6kg/h.
3. Compact: Volume of the main unit is only 30 100 semicolon of the domestic same product.
4. Safety and reliability: Temperature is set arbitrarily and controlled automatically. When the pipe or pressure is blocked, the unit will shutdown automatically to ensure safety of the unit.
5. Easy operation: The boiler is controlled fully automatically. Only one knob completes all operations
6. Simply descaling: Simple descaling process produces maintenance troubles yearly.
7. Cold resistance: Special heat preservation and air blow system protect pipes and valves from freezing.
Specifications:
|
Carrier |
|
Model |
EQ1108G6D1 |
Engine model |
EQB160-10 |
|
Rated power(Kw/r.pm) |
118/2500 |
Dimension(L*W*H)(mm) |
8040* 2490*3045 |
|
Min. ground clearance(mm) |
265 |
Approach angle(º) |
30 |
|
Departure angle(º) |
14 |
Min. turning diameter(m) |
18 |
|
Max. speed(km/h) |
80 |
Max. gradeability(100 semicolon) |
27 |
|
Total weight(Kg) |
10595 |
Tank capacity(m³) |
3 |
|
Boiler |
|
Model |
Model 10000 Steam Cleaner |
Steam displacement(kg/h) |
1000~2000 (adjustable) |
|
Steam pressure(MPa) |
2-10(adjustable) |
Steam temperature(ºC) |
Normal~180ºC (adjustable) |
|
Fuel consumption(Kg/h) |
22.6 |
|
|
|
|
Servicing Trucks
|
|
Servicing truck, equipped with a crane, an elevator rotating ±360 ºs and special device for pulling crankpin of pumping unit, is used for maintenance, service, adjustment, lubricating and hoisting in oilfield, and for maintenance of electrical power line. Other devices such as welder are available upon request. The carrier with high performance is suitable for operation in extreme environment and conditions.
Specifications:
|
Model |
JHX5140JGKX |
|
Carrier model |
EQ1141GJ |
|
Engine model |
6BT118-01 |
|
Brake distance at 30km/h full load |
�? |
|
Min. turning diameter(m) |
16 |
|
Approach angle(º) |
34 |
|
Departure angle(º) |
18 |
|
Min. ground clearance(mm) |
255 |
|
Max. lifting capacity(t) |
5 |
|
Max. lifting height(m) |
11.6 |
|
Max. working amplitude(m) |
9 |
|
Rotary angle(º) |
±360 |
|
Amplitude angle(º) |
0-75 |
|
|
|
|
