| Here is that heat exchanger by GEA China, GEA is Germany company, world famous producer of exchanger and radiator.
|
Description |
Qty. |
Unit Price USD |
Total Price USD |
|
|
|
|
|
|
NT350S HV, 349Pl., 1.4401, 0.5, EPDM, B-10, S235-JRG2 |
1 |
90,188.06 |
90,188.06 |
|
|
|
|
|
|
Remark: |
|
|
|
|
1. quotation is based on FOB China Port |
|
|
|
2. Validity: 30 days from Jan. 16th, 2009 |
|
|
|
3. Payment: 30% by T/T, balance by L/C or T/T |
|
|

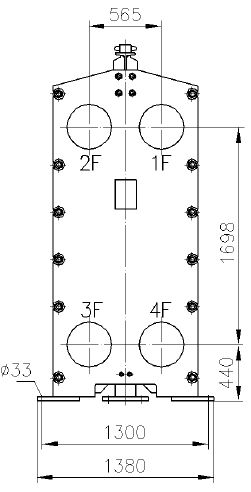

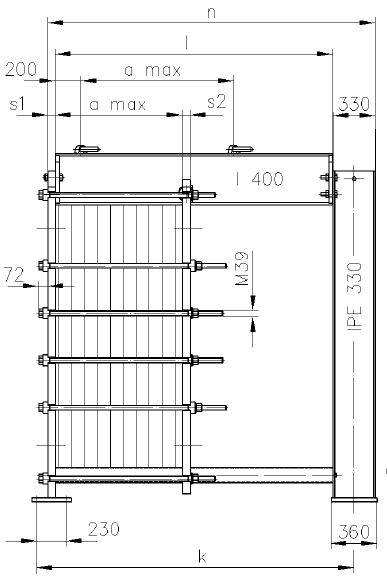

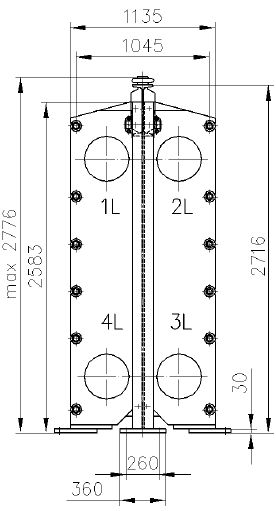

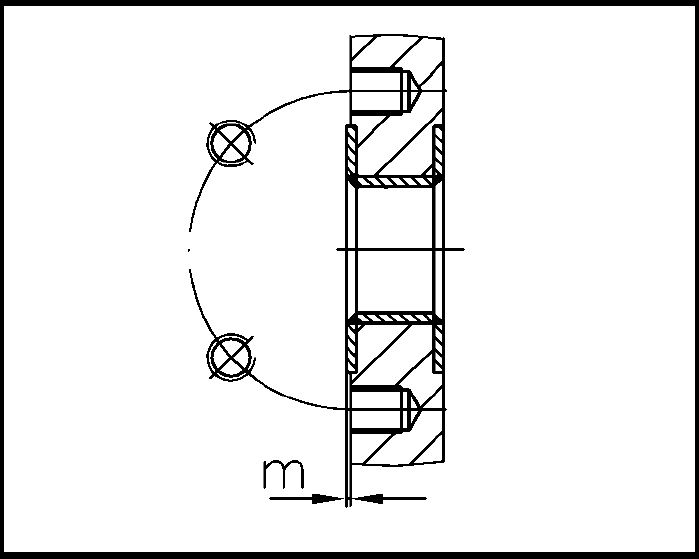

Dimension Sheet Plate Heat Exchanger
|
Customer: |
|
Quotation:3502385111 |
Item No.: 10 |
Alternative No.: 0 |
|
Customer item: |
Type: NT350S B-10 Dimensions of drawing in [mm] 0350-132-Model.tif


| n: |
2950 mm |
s1: |
80.00 mm |
a-max frame: |
1364 mm |
empty weight: |
6456 kg |
| k: |
2860 mm |
s2: |
80.00 mm |
a-max actual: |
1204 mm |
max. total weight: |
8504 kg |
| l: |
2540 mm |
|
|
|
|
|
|
| Pos |
DN |
Type |
Media |
In |
Out |
Add. |
m |
| 1F |
DN350 |
Rubberinsert DIN 2633 EPDMDN350 0.082 |
LEAN AMINE |
x |
- |
- |
4 mm |
| 2F |
DN350 |
Rubberinsert DIN 2633 EPDMDN350 |
RICH AMINE |
- |
x |
- |
4 mm |
| 3F |
DN350 |
Rubberinsert DIN 2633 EPDMDN350 |
RICH AMINE |
x |
- |
- |
4 mm |
| 4F |
DN350 |
Rubberinsert DIN 2633 EPDMDN350 |
LEAN AMINE |
- |
x |
- |
4 mm |
|
|
|
|
|
|
GFT |
|
|
|
|
DIN2633 |
|
|
|
|
PN16 |
|
|
|
|
1F;2F;3F;4F |
|
|
|
Technical Revisions reserved. Layer thickness in case of painted frames acc. DIN EN ISO 12944-5, frame plate surface quality acc. DIN EN 10029. The design details are valid for phe manufactured by GEA Ecoflex GmbH/Sarstedt. |
