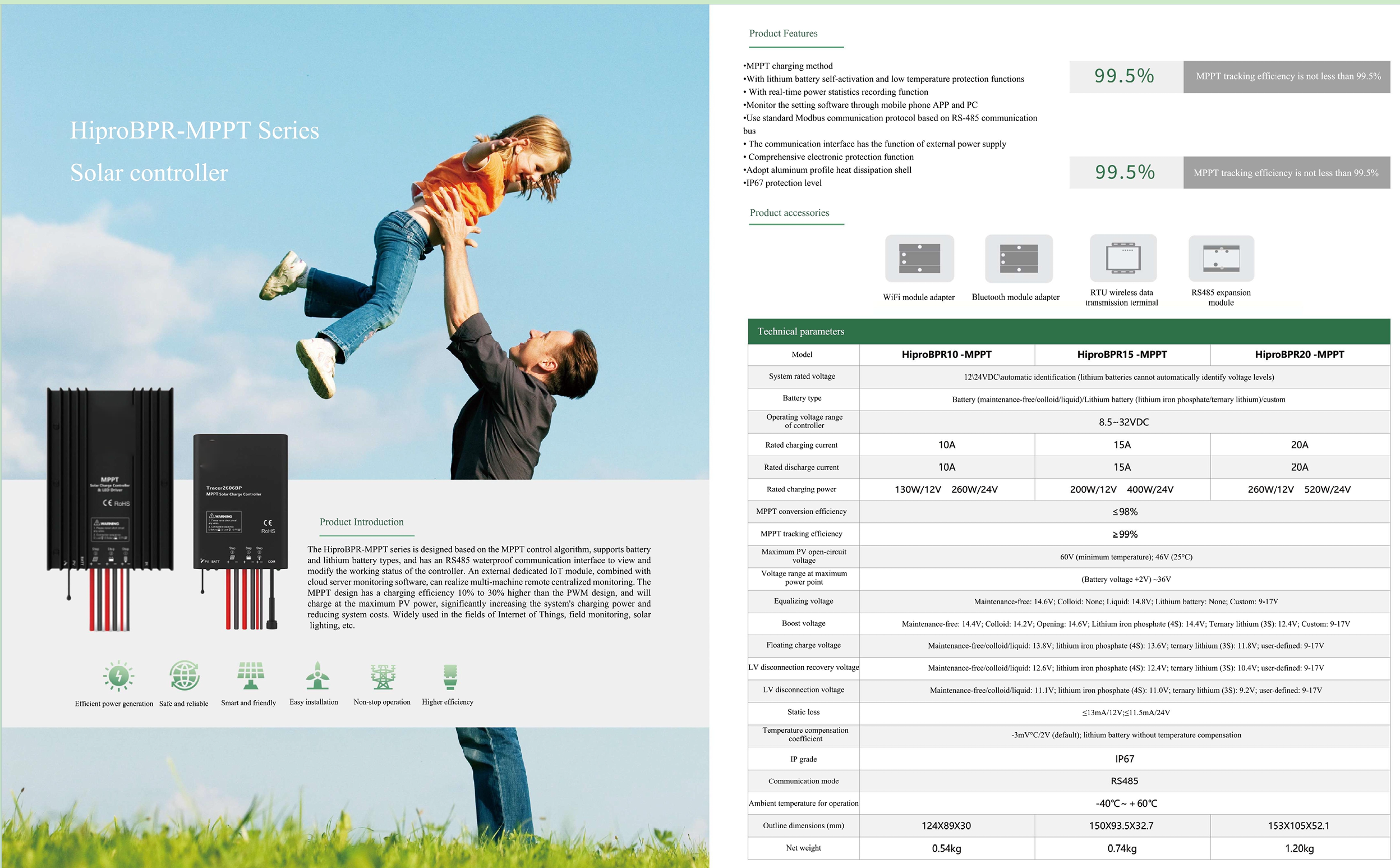

Product Introduction

The HiproBPR-MPPT series is designed based on the MPPT control algorithm, supports battery voltage detection and multiple battery types. It can be connected to a computer through the RS485 communication interface to modify the working status of the controller. An external dedicated BT module, combined with the MPPT design, can modify the working parameters of the controller in real time. It can automatically identify the maximum power point of the photovoltaic array, modify the working status of the controller. An external dedicated BT module, combined with the MPPT design, has a charging efficiency 10% - 30% higher than the PWM design, and will charge at the maximum PV power, significantly increasing the system's charging power and conversion efficiency. Widely used in fields of telecom, PV power, solar street lighting, etc.

Product Features

• MPPT charging method

• With lithium battery self-activation and low temperature protection functions

• With real-time power statistics function

• Support communication with computer software, APP and PC

• Use the standard Modbus communication protocol based on RS485 communication bus

• Communication interface has the function of external power supply

• Overvoltage, overcurrent protection function

• Adopt aluminum profile heat dissipation shell

• MPPT protection level

Product accessories

• WiFi module adapter

• Bluetooth module adapter

• RTU wireless data transmission terminal

• RS485 expansion module




Technical parameters
