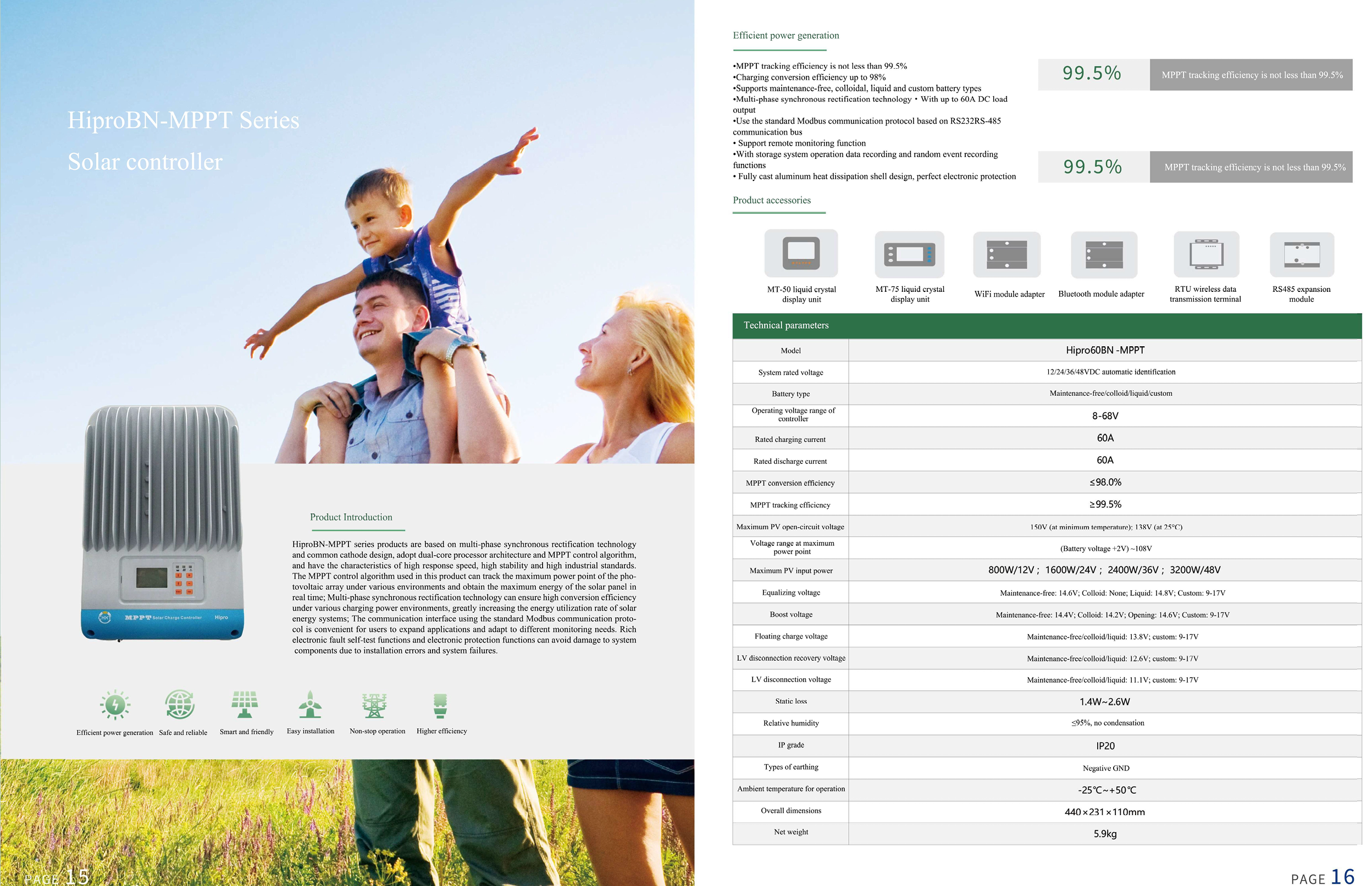

Product Introduction

HiproBN-MPPT series products are based on multi-phase synchronous rectification technology and common cathode design, adopt dual-core processor architecture and MPPT control algorithm. The MPPT control algorithm has high response speed, high stability and high industrial practicality. It can track the maximum power point of the photovoltaic array in real time, effectively improve the energy utilization rate of the photovoltaic system, and significantly increase the energy utilization rate of solar energy systems. The communication interface uses the standard Modbus communication protocol, which is convenient for system integration and networking. It has multiple protection functions such as overvoltage, undervoltage, overcurrent, short circuit, reverse connection, self-test function and electronic protection functions can avoid damage to system components due to installation errors and system failures.

Product Features

• MPPT tracking efficiency is not less than 99.5%

• Charging efficiency can reach up to 98%

• Supports maintenance-free, colloidal, liquid and custom battery types

• Multi-phase synchronous rectification technology, with up to 60A DC load

• Use the standard Modbus communication protocol based on RS232/RS485

• Support remote monitoring function

• With storage system operation data recording and modern event recording function

• Fully die-cast aluminum heat dissipation shell design, perfect electronic protection

Product accessories

• MT-50 liquid crystal display unit

• MT-75 liquid crystal display unit

• WiFi module adapter

• Bluetooth module adapter

• RTU wireless data transmission terminal

• RS485 expansion module

•


Technical parameters
