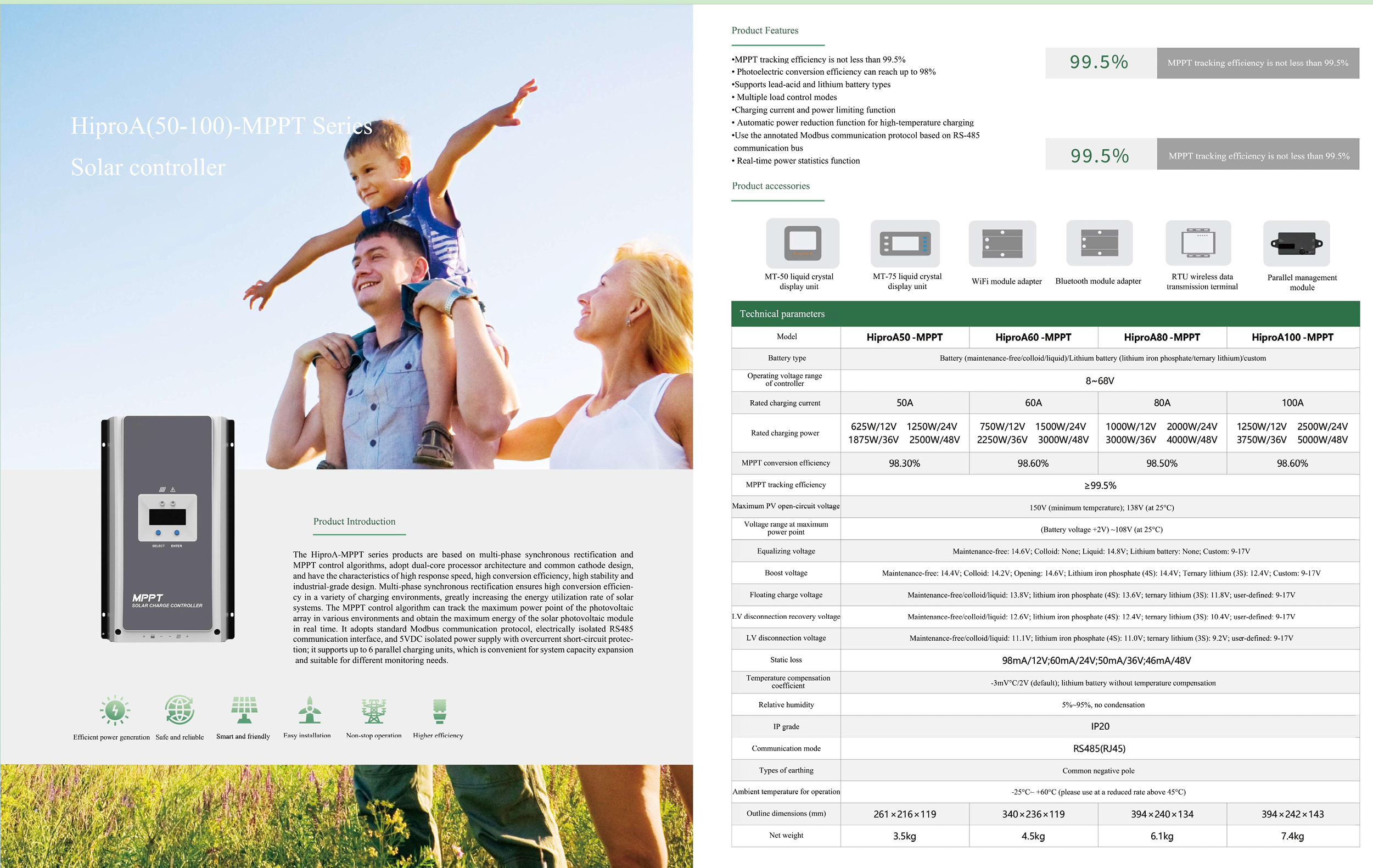

Product Introduction

The HiproA-MPPT series products are based on multi-phase synchronous rectification and MPPT control technology, with independent intellectual property rights and have the characteristics of high response speed, high conversion efficiency, high stability and industrial grade design. Multi-phase synchronous rectification ensures high conversion efficiency and low heat generation. It is suitable for various photovoltaic power generation systems. The MPPT control algorithm can track the maximum power point of the photovoltaic array in various environments and obtain the maximum energy of the photovoltaic module. The product has multiple load control modes, supports automatic identification of various batteries, built-in RS485 communication bus, and 5VDC isolated power supply with overcurrent short-circuit protection, can support up to 8 parallel charging units, which is convenient for system capacity expansion and suitable for different application sites.

Product Features

• MPPT tracking efficiency is not less than 99.5%

• Photovoltaic conversion efficiency can reach up to 98%

• Supports lead-acid and lithium battery types

• Charging current and power limiting function

• Automatic power reduction function for high-temperature charging

• Use the standard Modbus communication protocol based on RS485 communication bus

• Real-time power statistics function

Product accessories

• MT-50 liquid crystal display unit

• MT-75 liquid crystal display unit

• WiFi module adapter

• Bluetooth module adapter

• RTU wireless data transmission terminal

• Parallel management module

Technical parameters
