Emerson Industrial Automation > EGS Electrical Group
Receptacle Catalog Number: JBR6034-150 / JBR6034150
Specifications:
RECEPTACLE,ELEC,600V,60HZ,4 POLE,3 W,#JB RECEPTACLE,ELECTRICAL: TYPE: DEAD FRONT INTERLOCK CONNECTION; POLE: 4; WIRE: 3; AMPERAGE: 60; VOLTAGE: 600 VAC; NEMA CONFIGURATION: 4, 4X; COLOR: BLACK; STANDARD: UL 1010; ADDITIONAL DATA: SWITCHED RECEPTACLE, USED FOR BLOCK C, D AND F TURBINE AREA; INTERLOCK WITH SW ITCH FOR USE IN HAZARDOUS LOCATION; HUB SIZE 1-1 2 IN.; TERMINAL BLOCK: CU-AL; DISCONNECT SWITCH RATING: 60 A; 30 HP A T 600 VAC; 50-400 HZ; PRESSURE WIRE TER MINAL; RECEPTACLE IS PREWIRED TO TERMIN AL BLOCK; DISCONNECT SWITCH MOUNTED ON THE COVER ASSEMBLY. APPLETON ELECTRIC COMPANY: P/N#JBR6034-150 PATENT NO. 5212624 APPROX. WT. 25.00 LBS
JBR -RECEPTACLE INTERLOCKED WITH SWITCH FOR USE IN HAZARDOUS LOCATIONS
JBR Series 30 and 60 Amp Switched Receptacles Catalog Pages
Quotation:
|
Item |
Description |
Part No |
Quantity |
FOB China/Unit Price |
Total |
|
1 |
RECEPTACLE,ELEC 60A APPLETON ELECTRIC COMPANY |
JBR6034-150 |
2 |
1,658.39 |
3,316.77 |
|
|
|
|
|
Total |
3,316.77 |
|
Remark: |
|
1. quotation is FOB China in US Dollar |
|
2. Delivery time: 9-10 weeks. |
|
3. Payment terms: TT 30% with order, TT balance before delivery. |
|
4. Quotation code: Sharjeel Sid 62620130304 |

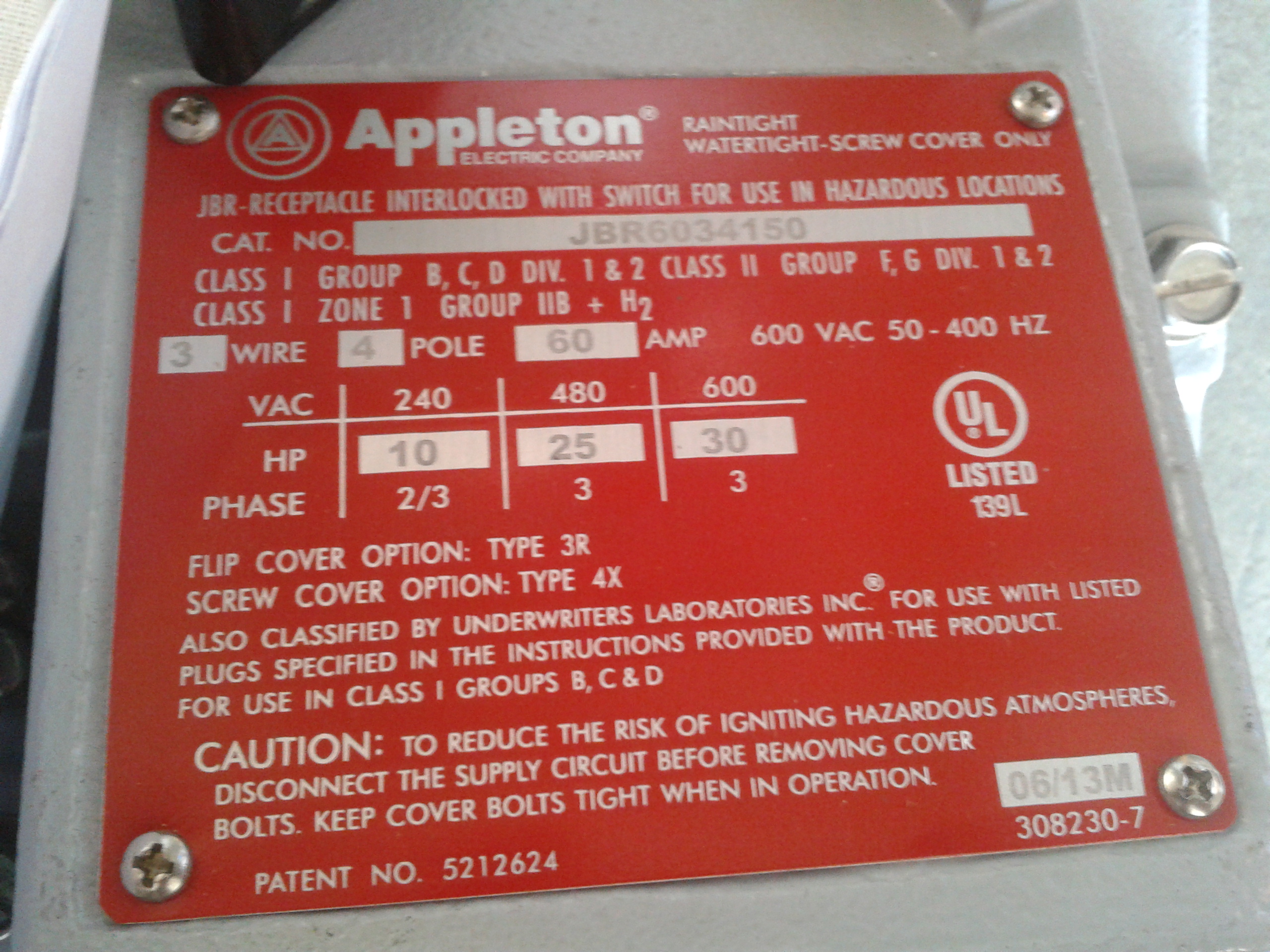

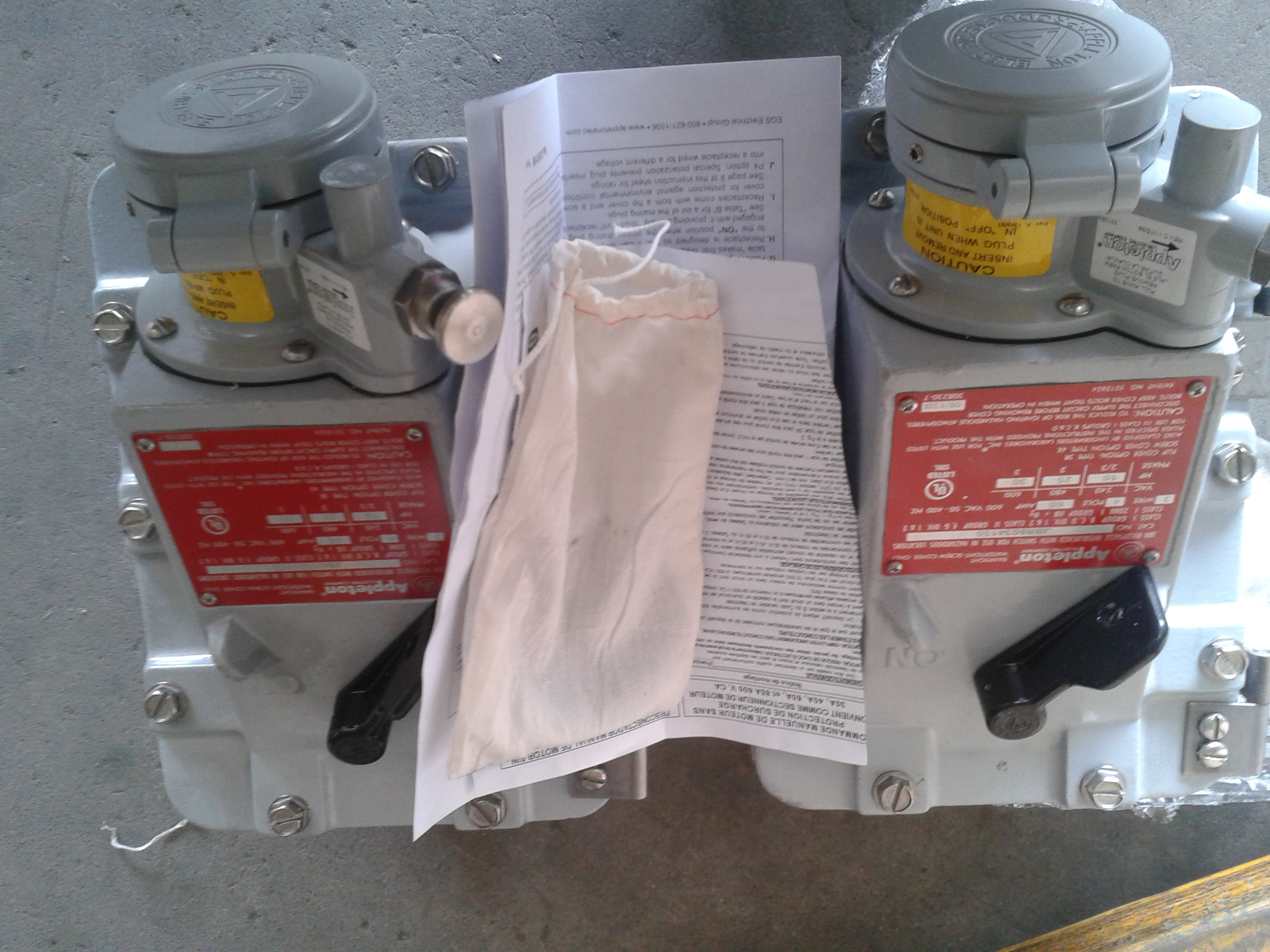

Here are some pictures:
Other Catalog Numbers/product:
30CRING BRTB4X JBR3023150
30SCAP CPH3023BC JBR3034150
ACP3023BC CPH3034BC JBR6023150
ACP3034BC CPH6023BC JBR6034150
ACP6023BC CPH6034BC
ACP6034BC ECD50B4X
63237108 1000VA MCR HW REGULATOR 50HZ
CPH3023BC CPH 30A 2W3P .390-1.375
EBR1034EH100 EBR 100A 3W 4PWEST EHB 100A
SDU8505 OFFLINE UPS 850VA 230V DIN MTG
JBR Series 30 and 60 Amp Series Switched Receptacles
|
Amp |
Hub Size (Inches) ‡ |
Wire/Poles |
Terminal Block Wire Range |
Receptacle Catalog Number |
Mating Plug Powertite® |
Complete Plug |
|
30 |
1-1/2 1-1/2 |
2W, 3P 3W, 4P |
#10 -#4 CU-AL |
JBR3023-150 JBR3034-150 |
ACP3023BC ACP3034BC |
CPH3023B CPH3034B |
|
60 |
1-1/2 1-1/2 |
2W, 3P 3W, 4P |
#4 -#6 CU-AL |
JBR6023-150 JBR6034-150 |
ACP6023BC ACP6034BC |
CPH6023BC CPH6034BC |
|
Accessories and Replacement Parts |
|
Description |
Catalog Number |
|
Type 4X Drain (field installed) |
ECD50B4X |
|
Type 4X Breather (field installed) |
BRTB4X |
|
30 Amp Plug Clamping Ring (standard with 30 Amp models) |
30CRING |
|
30 Amp Screw Cover (for receptacle) |
30SCAP |
|
