No.

Description

Specification

Qty.

Unit

Remark

1. Natural gas   genset

1.1

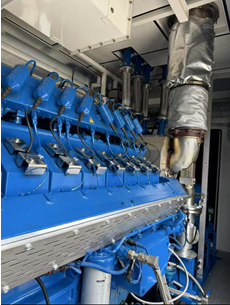

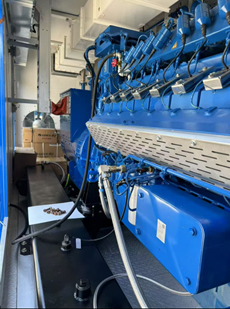

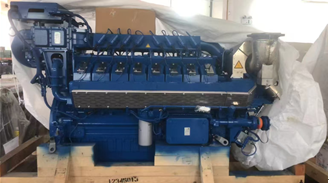

Engine

TCG3016V16S

1

Set

MWM

1.2

Coupling

C1X34D00392

1

Set

Vulkan

1.3

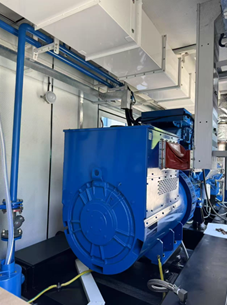

Generator

LSA50.2L8�?/span>1080kw,   6 wires, H/F,400V, double bearings�?/span>

1

Set

Leroy Somer

1.4

Shock mounts

1

Set

Chinese

1.5

Common frame

Design to produce

1

Set

Chinese

1.6

Battery and bracket

300Ah/24V

1

Set

Chinese

2. Cylinder liner   water cooling system skid

2.1

Cylinder liner water pump

1

Set

Chinese

2.2

Cylinder liner water heater

1

Set

Chinese

2.3

Expansion tank

Volume 100L

1

Set

Chinese

2.4

Cylinder liner water radiator

40�?/span>

3

Set

Chinese

3. Charge air   cooling water system skid

3.1

Charge air cooling water pump

3

Set

Chinese

3.2

Expansion tank

Volume 50L

3

Set

Chinese

3.3

Charge air cooling water radiator

40°C

3

Set

Chinese

4. Gas supply   system

4.1

Gas inlet valve

Gas inlet 2-20kpa

3

Set

Chinese

4.2

Valve fixing platform

3

Set

Chinese

5. Control system

5.1

Main control cabinet

3

Set

Chinese

5.2

Auxiliary control cabinet

3

Set

Chinese

5.3

Switchboard cabinet

Switch 2000A

3

Set

Chinese

6.  Exhaust gas system

6.1

Exhaust silencer

3

Set

Chinese made

7. Container system

7.1

Container with auxiliaries

20   feet

3

Set

Chinese made

8. Factory   acceptance test (FAT)

7.1

Oil

For FAT

3x120

litre

Chinese brand

7.2

FAT

3

time

In China
