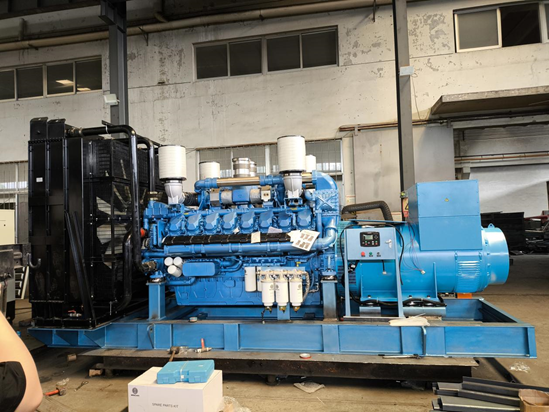

WEICHAI 2500kW Diesel generator set 16M55D3350E311

Name	Power	Engine Brand And model	Alternator brand And model	数量（台�?/span> Quantity
Diesel generator set	2500kW	潍柴 WEICHAI 16M55D3350E311 60HZ	ENGGA EG630GSC 4160V	1
Configuration of each set
radiator		standard with a 50 degree water tank		included
battery		Maintenance free lead-acid acid		included
control system		Self starting control（DEEPSEA original�?/span>		included
Incoming cabinet		included		included
Outgoing cabinet		included		included
PT cabinet		included		included
DC screen		included		included
Air circuit breaker		standard		included
base		standard		included
Assemble fee		standard		included
Transformer to battery connection wire		standard		included
shock pad		standard		included

generator parameters

generator parameters
model	BM2500GF
Rated output power (KVA/KW)	3125/2500
Rated output current (A)	4500
Frequency (Hz)	60
Output voltage	4160V
Power factor	0.8（滞后lag�?/span>
generator weight (kg)	25000
*Silent box size (length width * height) (mm)**	700027203070（About�?/span>
Main parameters of the engine
model	16M55D3350E311
type	V-type, water-cooled, four stroke
Air Intake method	Turbocharged
Total displacement (L)	87.5
Cylinder - Bore x stroke (mm)	16-180×215
Prime Power	2930
Standby Power	3350
Speed (r/min)	1800
Compression ratio	16.5:1
start mode	Electric start
control mode	electronic speed control
Main parameters of the alternator
model	EG630GSC
power(KVA/KW)	3125/2500
protection grade	IP23
Insulation level	H
Power factor	0.8滞后lag
Voltage fluctuation rate (%)	≤�?.5
Rated voltage (V)	4160V
Adjustment range of no-load voltage	≥�?%
Voltage control mode	AVR
Efficiency (%)	98.6
Connection	Three-phase four-wire

Note: The pictures are for reference only, and the actual configuration shall prevail
