| Basic Information |

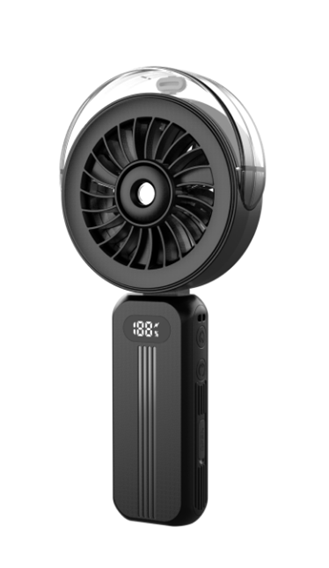

| Product Name | High-speed Handheld Spray Fan | ID Picture |
| Project Model | S-P6 |  |
| Product Dimensions | 207×95×43MM |
| Product Colors | White, Black, Pink, Purple |
| Product Material | ABS Material |
| Product Weight | Net weight 220g, Gross weight 310g |
| Packaging Dimensions | 118×47×225MM |
| Quantity per Carton | 60 pieces per carton |
| Carton Dimensions | 50×35×45CM |
| Carton Weight | Approximately 19.4kg |
| Appearance Process | Mold Texturing |
| Logo Process | Pad Printing/Engraving |
| Working Environment/Temperature | Indoor; 0 - 45 °C |
| Packaging List | 1×Handheld Fan, 1×Lanyard, 1×Spray Bottle, 1×Data Cable, 1×Blister, 1×Instruction Manual, 1×Packaging Box |
| Working Modes | Handheld use; Spray function requires filling water |
| Estimated Launch Time | January 2025 |
| Function & Operation Definition |
| Key Operation | Fan button | Cycle between power-on and power-off (the minimum gear is enabled by default after power-on). Long press to power off at any gear. |
| Spray button | Cycle between spray-on and spray-off. The spray is timed for 10 minutes by default. |
| Indicator Light Display | Low Current Protection | When the battery voltage is lower than 10%, the lightning icon flashes rapidly for low-battery warning. When the battery voltage is lower than 3.1V, the fan shuts off automatically. "00%" flashes 5 times and then goes out. It flashes again when pressed. |
| Charging State | The screen displays the battery level, and the lightning icon flashes. |
| Fully Charged State | Displays 100% when fully charged, and the lightning icon stays on constantly. |
| Charge and Use Simultaneously | Support | When using while charging, the maximum gear of the fan is limited to Gear 3. |
Definition of Electrical Performance
(Motherboard Settings) |
| Charging Duration | 3 hours 45 minutes |
| Usage Duration | First gear: 10 hours 36 minutes |
| Second gear: 6 hours 20 minutes |
| Third gear: 4 hours 18 minutes |
| Fourth gear: 2 hours 48 minutes |
| Wiring Requirements | Interface Type | Type-C | Electrical Performance | Gear Operating Speed (Tolerance: ±200/min) | First gear: 5900/min |
| Wiring | Type-C/0.8M cable�?A�?/td> | | | Second gear: 7100/min |
| Input/Output (±0.25V) | Input | 5V-2A MAX
(Supports Type-C - Type C, USB-Type C charging cable) | | | Third gear: 8300/min |
| | | | | Fourth gear: 9500/min |
| Output | None | | Gear Operating Voltage (Voltage Detection State ±0.3V) | Lowest gear: 5V |
| Electrical Performance (Mainboard) | Board Frame | | | | Second gear: 6V |
| | | | | Third gear: 7V |
| | | | | Fourth gear: 8V |
| Protection Settings | Overload Protection: Automatically protects when the load exceeds the rated current | | | |
| | | Gear Operating Current (For reference only, subject to actual sampling requirements) | First gear: 385mA |
| Battery Protection: The mainboard has a built-in protection circuit | | | Second gear: 650mA |
| | | | Third gear: 950mA |
| OVP | | | Fourth gear: 1300mA |
| | | Standby Current | �?0μA |
Main Component Specification and Performance
(For reference in circuit design, component selection, etc.) |
| Fan Motor | Motor Specification | 60 Three-phase Motor | Battery Specification | Battery Model | Lithium-ion Battery: 21700
Actual Capacity: 4000mAh |
| Rated Voltage | DC 9V
(Operating Voltage: 4V - 9V) | | | |
| Rated Speed | | | Usage Quantity | 1 Pcs |
| Specification Sheet | | | Total Battery Capacity | Actual Capacity: 4000mAh |
