| Name of Used or Surplus Equipment/Project:ect: | STX MAN 18V 32/40 HFO/DIESEL GENSETS 8640KW(60HZ) New & Genuine | | Brand name of Equipment: | MAN | | P/N of Equipment: | STX-MAN 18V32/40 | | Industry: | Fluid Power Generation Industry | | Summary Briefs on the equipment: | Stock New and Genuine Diesel gensets Gas gensets | | Origin of Main Product: | China | | Year of Production of Main Equipment: | 2011 | | Current Country located: | 中国 China | | Original Packing: | | | Warranty: | 一�� One Year | | Documents: | | | Dismantled or on site: | | | Can be Test Run or Not: | | | Year of Shutdown: | | | Year of Overhaul: | | | Total Operation Hours: | | | O&M log: | | | Current Condition: | | | Dismantling, packing transportation Serviece: | | | Refurbishment Services: | | | Site installation and commissioning or Supervision: | | | Role: | 贸易�?Trader | | Already Sold or not: | | | Time of first Sold: | | | rough budget or contract value in USD: | | | Payment Terms: | | | File Link: | NO_File |
Main business is supply generator set (diesel/gas) and technical support since 1990S
generator set in stock , they are :
Diesel gensets :
STX-MAN 18V 32/40 8sets
MAN 6L 27/38 4 sets
MAN 9L 21/31 5 sets
MAN12VP185 4 sets
MAN18V28/32S 5sets
Gas gensets:
Jenbacher 320 10sets
Jenbacher 612 2sets
Jenbacher 620 2sets
Caterpillar 260 1set
All of them are Genuine new machines. Kept very well under routine maintenance
STX MAN 18V 32/40 HFO/DIESEL GENSETS
FOR SALE(12 UNITS) 8640KW(60HZ) (New & Genuine)
| diesel type | STX-MAN 18V32/40 | | specification | 9080Kw x 720 RPM x 13.8 kvx 60 Hz | | fuel oil | HFO or MDO | | manufacturer | STX Engine Co., Ltd. MAN impower
factory/korea | | date of manufacturer | 2011year | | test run date | March-Sep, 2011year | | three generator sets | HYUNDAIHAR7189-1028 | | Type of super charger | NR34/S | | cylinder diameter x length | 320MM x 400MM | | revolution R.P.M. | 720rpm | Average effective piston
pressure | 25.90Bar | | Diesel engine output | 9,080kW | | Dimensions | 12500*3712*5230mm | | Weight (dry weight) | 142000kg |

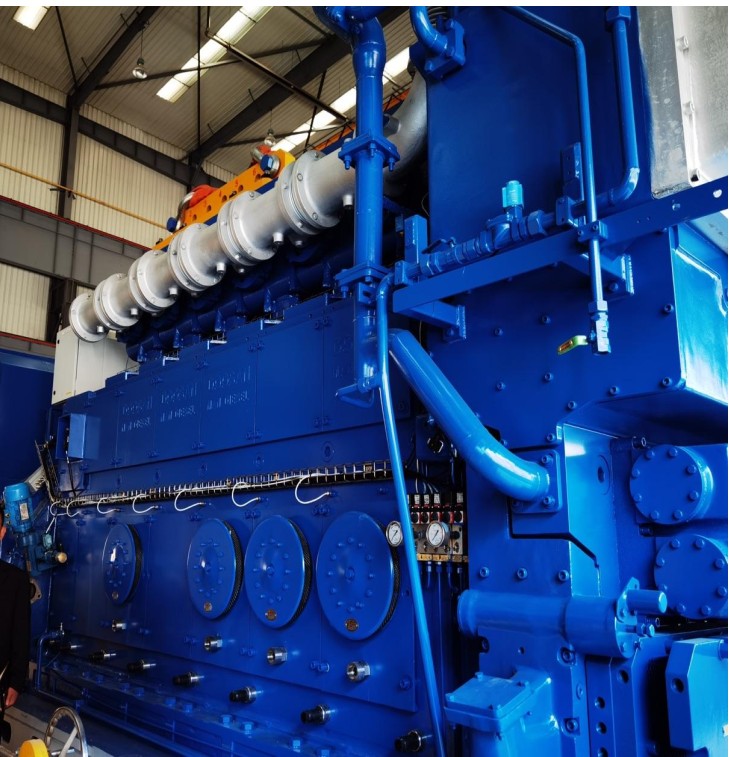

Pictures of STX-MAN 18V32/40
MAN 6L27/38 --- HFO generator set --- (NEW & Genuine) --- 4PCS
| Diesel engine model | MAN 6L27/38 | | number of cylinders | 6 | | Diameter of cylinders | 270mm | | Travel length of piston | 380mm | | Rotate speed | 720rpm | | Diesel engine power | 1980kw | | Generator set power | 1900kw | | Generator set type | HYUNDAI HFJ7710-10P | | HZ | 60hz | | Voltage | 690v | | POWER FACTOR (lag ) | 0.9 | | manufacturer | DOOSAN MAN impower/ Korea | | Manufacture date | 2020 | | Dimensions | 7557*3712*2570mm | | Weight (dry weight) | 44500kg |

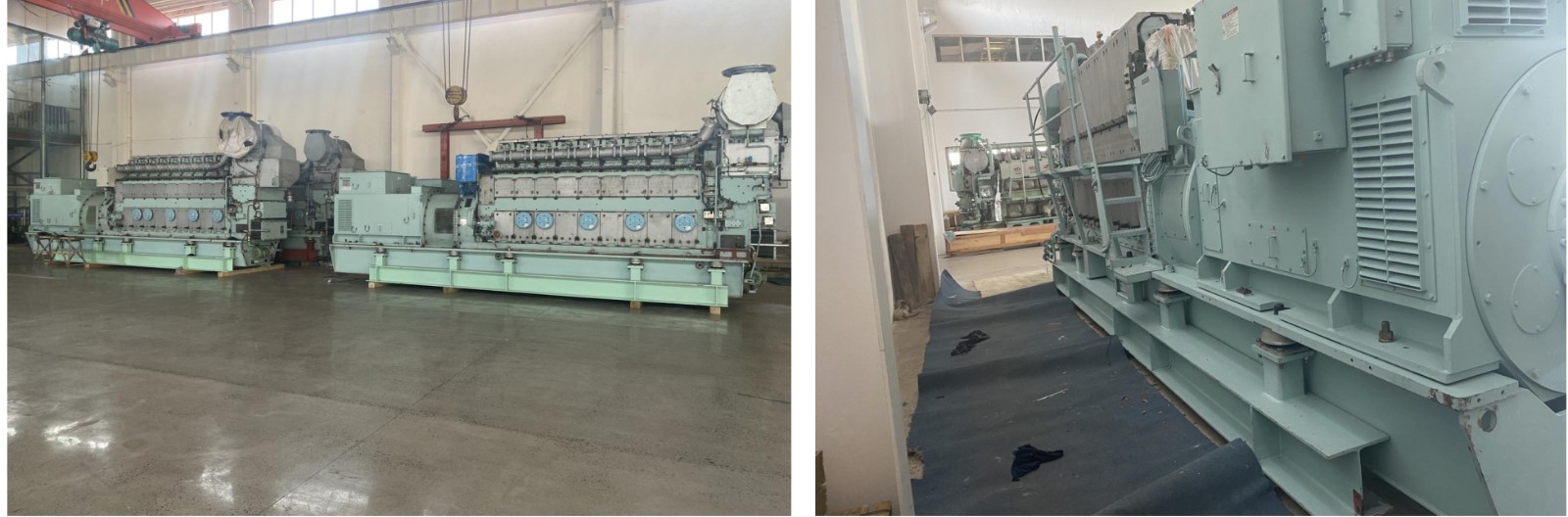

Pictures of MAN 6L 27/38:

MAN 9L21/31 - HFO generator set -- (NEW & Genuine ) ---6 PCS
| Diesel engine model | MAN 9L21/31 | | number of cylinders | 9 | | Diameter of cylinders | 210mm | | Travel length of piston | 310mm | | Rotate speed | 1000rpm | | Diesel engine power | 1980kw | | Generator set power | 1881kw | | Generator set type | HYOSEUNG SS1881 | | Hz | 50hz | | Voltage | 6.6kv | | POWER FACTOR (lag ) | 0.8 | | manufacturer | DOOSAN�?MAN impower/ Korea | | Manufacture date | 2013 | | Dimensions | 8062*3289*1750mm | | Weight (dry weight) | 36500kg |

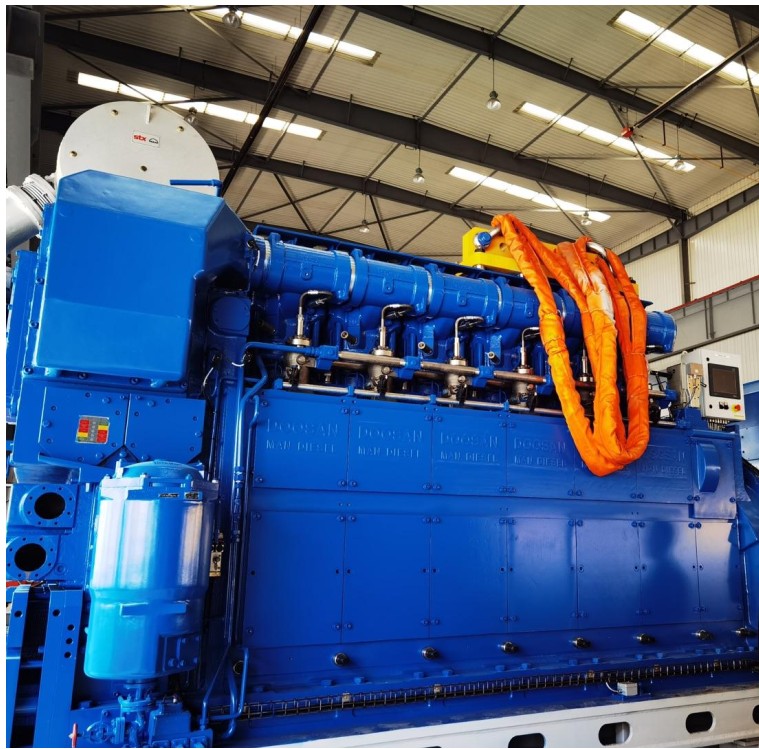

Pictures of MAN 9L 21/31
18V28/32S --HFO DIESEL ENGINE --- (NEW & Genuine)--- 6PCS
| Parameter of the engine | 18V28/32S | | Diameter of cylinders | 280mm | | Travel length of piston | 320mm | | Rating on terminal of alternator | 3850kW | | Rating on flywheel at 720/min | 4050kW | | Voltage | 4.16kV | | Rated frequency | 60HZ | | ambient air pressure | 1000mbar | | cooling water temp | 25�?/span> | | ambient temperature | 25�?/span> | | relative humidity | 30% | | Rotate speed | 720r/min | | number of cylinders | 18 | | Maximum burst pressure | 145bar | | Mean effective pressure | 19.0bar | | Diesel fuel consumption rate | 203+2%g/kWh(100%load) | | direction of rotation | clockwise | | LUB Oil consumption | 0.4~0.8g/kWh | | Dimensions | 10707*3600*3449mm | | Weight (dry weight) | 71000kg |

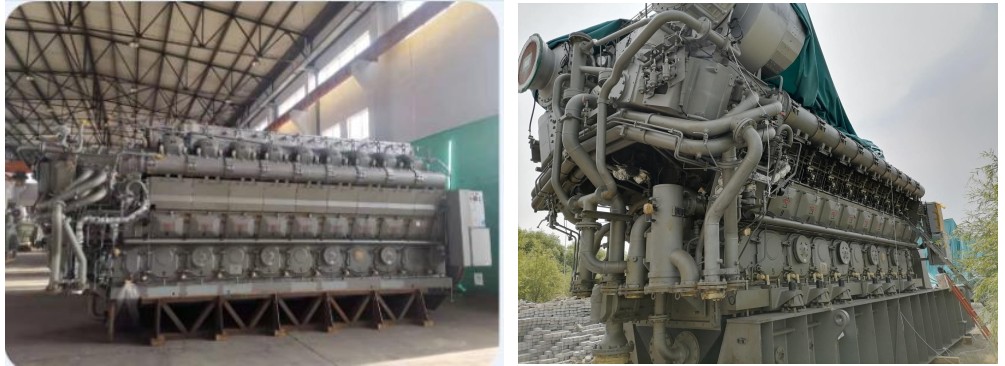

Photoes of 18V28/32S
MAN 12VP185TCM Propulsion Engines --- (NEW & Genuine ) --- 4SETS
| Diesel engine model | MAN 12VP185TCM | | No. of Cylinders | 12 | | Bore | 185mm | | Stroke | 196mm | | Compression Ratio | 13.1:1 | | Idling Speed (Basic Engine) | 600 rev/min | | Directional Rotation | Anti-clockwise looking on
flywheel | | Configuration | 90 Vee | | Rated power | 2720 kW | | Rated speed | 1937rpm | | Air intake temperature | + 45º Centigrade | | Sea water temperature | + 32º Centigrade | | Barometric pressure | + 1000 mbar | | Exhaust backpressure | + 25 mbar | | IMO NOx Emissions Regulations | IMO Marpol Annex VI Tier II | | Fuel consumption | 220g/kw.h +5% | | Lubricating oil consumption | less than 1.5 Kgs / hour at
100% load |

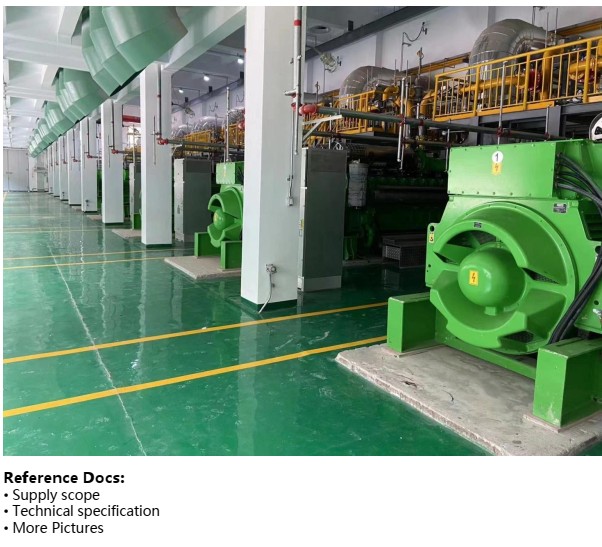

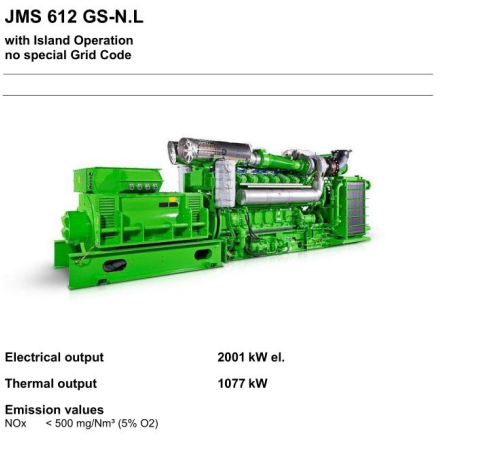

Jenbacher JMS612 --- (NEW & Genuine) --- 2SETS 2001kw*10.5kv*natural gas
Reference Docs:
• Supply scope
•Technical specification
•More pictures
Jenbacher JGS 620 --- (NEW & Genuine ) --- 2SETS
3354kw*10.5kv CBM (Coalbed Methane)

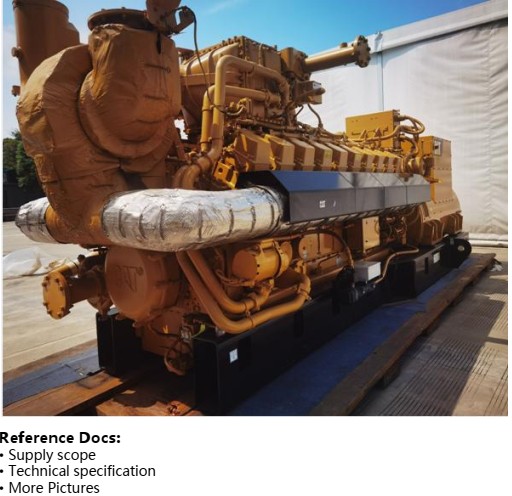

Caterpillar CAG260 --- NEW & Genuine --- 1SET
GAS Gensets 4300kw*10.5kv
