2548SZ/6x4/3450+1450/Long Cab/LHD

SPECIFICATION

Overall Dimension (L*H*W)mm

7050*2500*3260

Wheel base  (mm)

3450+1450

Curb weight (kg)

9200

Engine

Model

WP12.480,6cylinder in line;4 strokes,turbocharged cool, water cooling

Displacement (L)

11.596/diesel

Rated power (Kw/rpm)

350/2100

Emission Standard

Euro III (ECU)

Fuel tanker capacity (L)

400

Clutch

Model

#430,Single frictional disc,Hydraulic boosting

Gearbox

Model

12JS200T,12 gearshifts,2 reverse gearshift;

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

Model

TAS85

Frame

Fish belly shape, variable width, variable sections

Front axle

Double-shoe pneumatic brake, non-driving steering axle;

Middle axle

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle;

Rear axle

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle;

Tire

12.00R20;

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cab

Long cab model NG80B, inner air-condition, other equipment of manufacturer's standard;

Optional

90# single direction,domestic(Made in China), ABS;

Standard Quotation

FOB Tianjin Port, USD 57,300.00 PER UNIT (EXPIRED BEFORE 15^TH March,2012)

Quotation code

2548S 6352012215

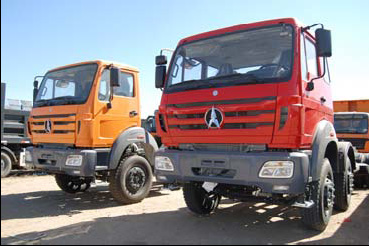

  The specification and the picture just for reference, Final confirmed by us.
